Straightside Press | Tie Rod Frame | 300 to 1200 Metric tons
NST Overview
Stock Presses Available Now for Quick Delivery : View Stock Press List
Created to meet your conventional stamping press requirements in the most unconventional ways. High-end features with low-end pricing.
NST Straightside Press Features
- Eccentric gear design ideal for high performance in the production of appliances, HVAC equipment, furniture, hardware, farm and garden machinery, etc.
- High energy drive for work being done higher in the press stroke
- Rigid, tie rod frame for reduced deflection under load
- Hydraulic overload protection (HOLP) is standard
- Ball type slide connections for reduced clearance and maintenance
- Pre-loaded roller slide guiding improves die life and part quality
- ACCESS Control standard, or Honeywell WINTRISS SmartPAC and the Link Systems Omni Link 5000 are available
- Wide-spaced slide connections

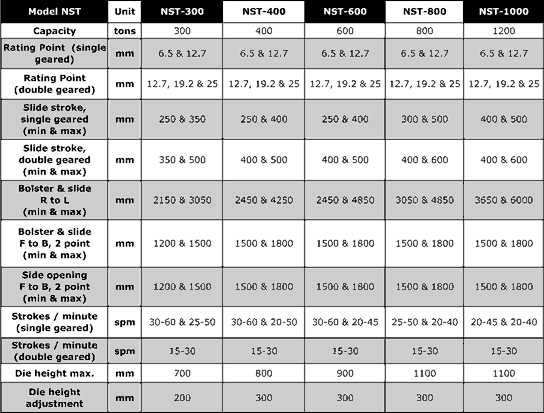

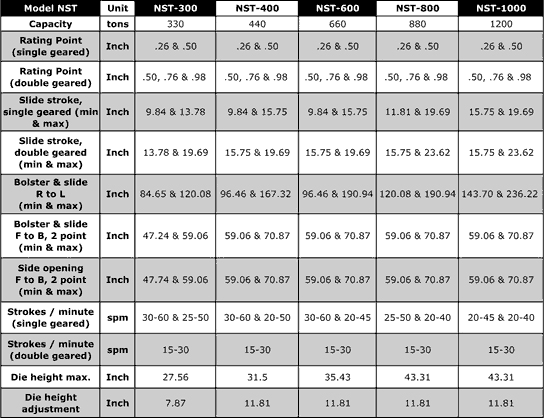

AIDA NST Straightside Tie Rod Frame Press Specifications
Select Model Range
NST-300 ~ NST-1000 English Specs | NST-300 ~ NST-1000 Metric Specs
Download the NST English and Metric Spec Sheet in PDF Format here

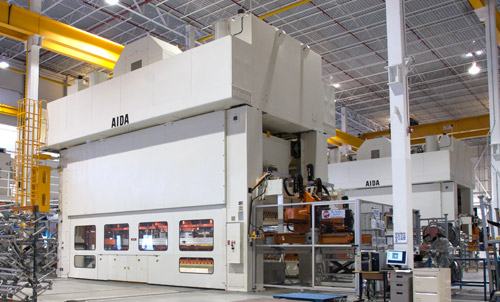

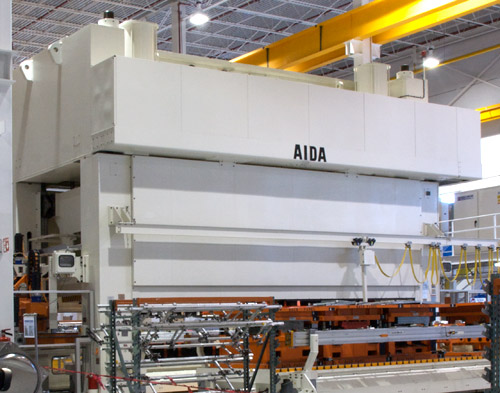

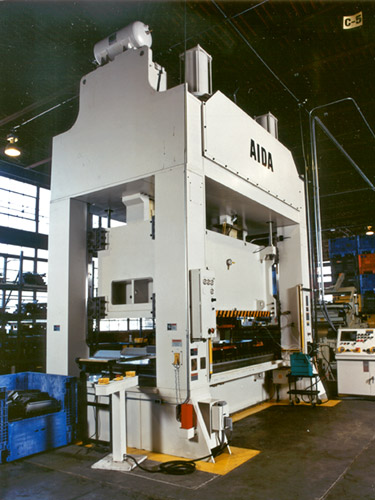

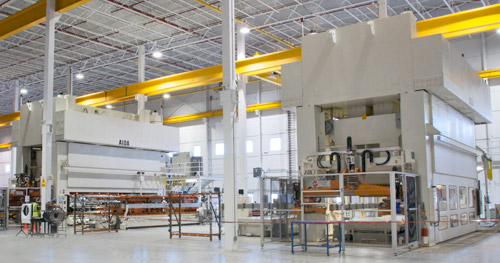

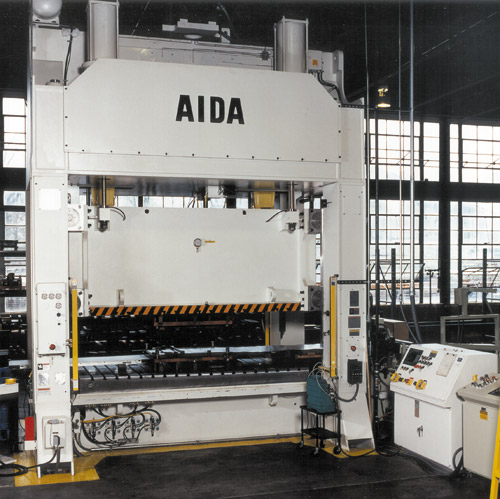

AIDA NST Straightside Tie Rod Frame Press Photos
Click the thumbnail for a larger view of the press
AIDA NST Straightside Tie Rod Frame Press Video
*slower connection speeds, please allow a few seconds to load*
