Gap Frame Press | Double Crank | 110 to 250 Metric tons
NC2 Overview
Stock Presses Available Now for Quick Delivery : View Stock Press List
The AIDA® NC series single and double crank gap frame presses are probably the most imitated stamping presses in production today. Why? Because they work hard day in and day out. This is a result of superior engineering and components drawn from our industry-leading PMX straight-side presses, things cosmetic imitations simply lack. It begins with a welded steel frame, cast iron slide, and a cast steel bolster to provide angular deflection which can be as little as 1/3 of competitive models for increased accuracy and die life. Add HOLP, the worlds’ fastest hydraulic overload protection system ... a standard wet clutch ... precision cut gears with hardened and ground pinions ... motorized slide adjustment … and the result is a press that delivers outstanding performance and unmatched reliability. AIDA NC gap-frame presses routinely perform progressive and transfer press die work normally reserved for straight-side presses, at a substantial savings.
NC2 Gap Frame Press Features
- Two-point counter-rotating crank shaft system reduces side thrust
- Six-face slide gib structure minimizes front-to-back and left-to-right movement
- Fastest hydraulic overload protection system in the industry, HOLP
- Air actuated wet clutch and brake
- Minimal overall clearances to reduce the effects of breakthrough

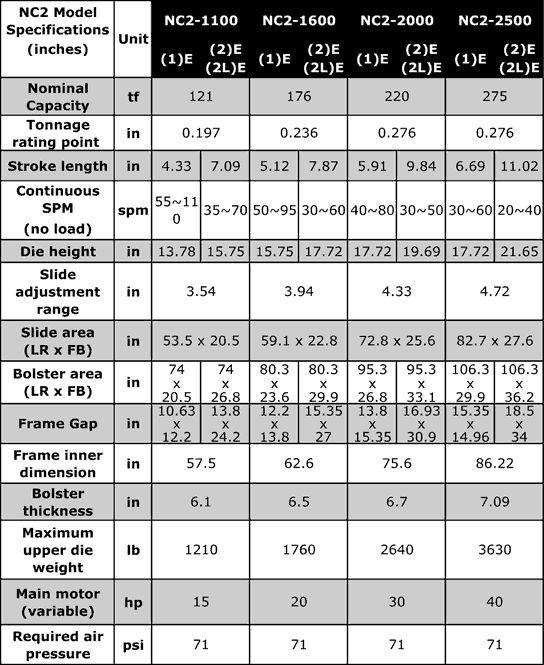

AIDA NC2 Gap Frame Press Specifications
Select Model Range
NC2-1100 ~ NC1-2500 English Specs | NC2-1100 ~ NC1-2500 Metric Specs

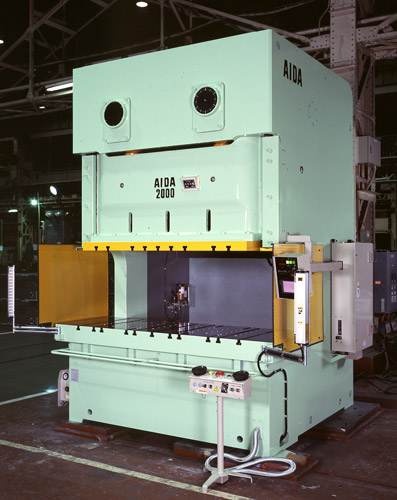

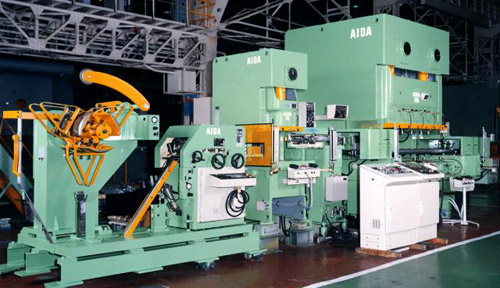

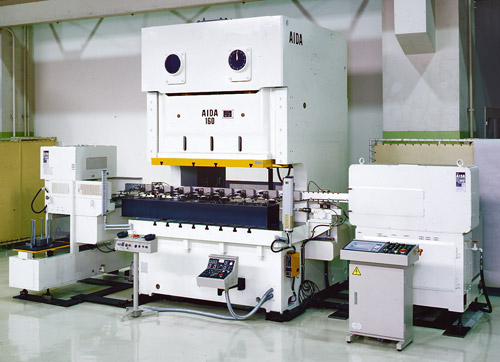

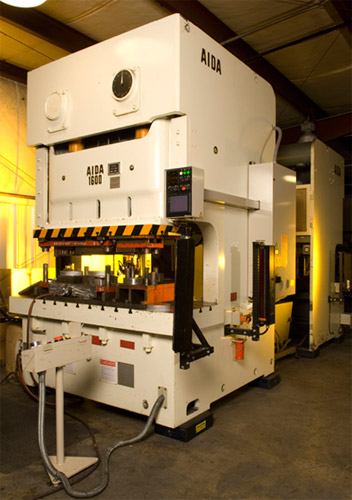

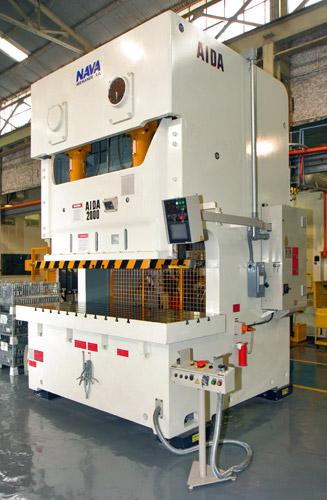

AIDA NC2 Gap Frame Press Photos
Click the thumbnail for a larger view of the press
AIDA NC2 Gap Frame Press Video
*slower connection speeds, please allow a few seconds to load*
