Straightside Press | Two Point | 400 Metric tons
HERA Overview
Stock Presses Available Now for Quick Delivery : View Stock Press List
HERA series presses are built taking the following factors into account:
- Reliability
- Precision
- Ease of use
- Safety
DESIGN - The design of the HERA is the result of detailed examination of every component of the press. All parts are designed and manufactured using modern computer aided systems. The principal parts are verified by Finite Element Analysis (FEA).
FRAME - All HERA presses are manufactured from a single fabrication of welded and normalized steel; with large end openings. To keep the overall dimensions to the minimum, the hydraulic, lubrication and pneumatic systems are integrated into the Frame.
GUARDING - The press is equipped with automatic rising screen guards in the die area. The guarding is according to EC regulations. Upon request, guards can be provided with sound-absorbent materials.
DRIVE - The main drive motor is variable speed, controlled by inverter. Other drive motors are available upon request.
FLYWHEEL - Air-cooled clutch/brake unit with a low moment of inertia.
KINEMATICS - Contra-rotating front to back eccentric shafts are driven by precision helical gears. Adjustable stroke is available as an option.
LUBRICATION SYSTEM - A progressive centralized recirculating system is used, fitted with filters, feedback switches and fillup point.
SLIDE - The slide is made of welded and normalized steel, with eight point gibs. The gibs can be adjusted in all directions. The adjustment of the slide is by electric motor.
OVERLOAD PROTECTION - Adjustable Overload Protection by a hydraulic system.
DIE CUSHIONS - Pneumatic die cushions are available as an option; these have a large pad area and are well guided by gibs in the bed. Larger forces can be provided by tandem cylinders.
QUICK DIE CHANGE - The HERA can be fitted with die lifters, tool loading arms and hydraulic clamping.
ELECTRICAL EQUIPMENT - A standard PLC is used for press automation and control. The operator interface is by touch screen, controlled parameters:
- Press speed setting and display
- Preset Parts and batch counters, machine cycles counter
- Manual and automatic setting of the slide position
- Electronic cam programmer
- Die feedback signals
- Die data archive
- Alarm display
HERA Accessories Upon Request
- Automatic stroke change
- Die cushions
- Mechanical slide knock-outs
- Photoelectric guards
- Automatic die change
- Automatic die clamps
- Anti vibration press mounts
- Sound reducing panels
- Tonnage monitoring
- Bearing temperature monitoring
- Telephone assistance by modem

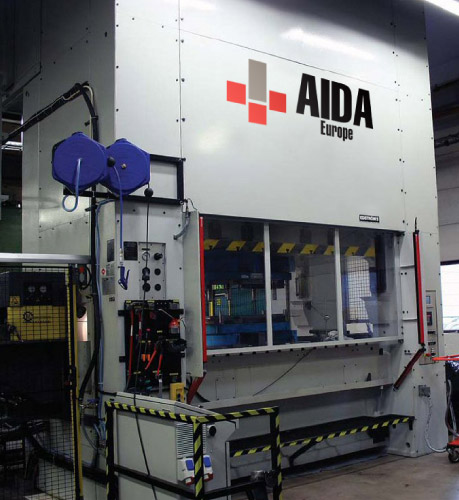

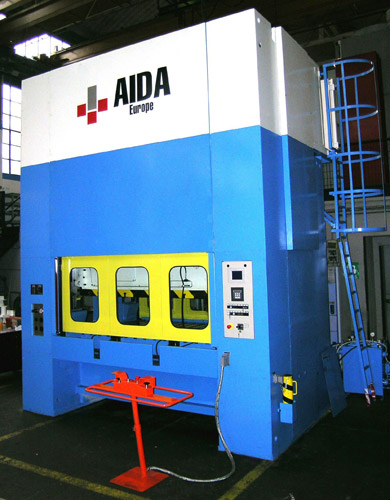

AIDA HERA Straightside Press Photos
Click the thumbnail for a larger view of the press
