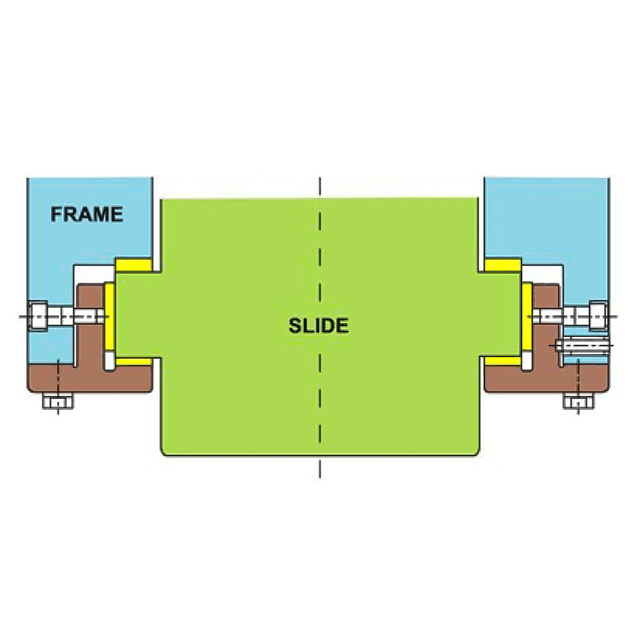

6-Point Slide Guide System Easy adjustment to maintain parallelism & resistance to off-center loading

Simple, yet effective slide guide system for stamping presses 6-Point Slide Guide System
  • Adjustable gibs are easily set to maintain slide to bolster parallelism of less than .001"/ft
  • Extra-long gibs with extensions on the slide minimize "tipping" of the slide within the guides and provide superior off-center guiding vs. industry standard
  • Bronze Gib Liners with grease lubrication on NC1 & NC2 models
  • Bronze Gib Liners with oil lubrication on NS1, NS2 and DSF C1, N1 & N2 models
  • Full length shims used to set slide guide clearance as opposed to set screws
