Unitized Frame Servo Press DSF-N2 Two-Point, From 110 - 300 Tons

DSF-N2-2000 200 Ton Servo Press

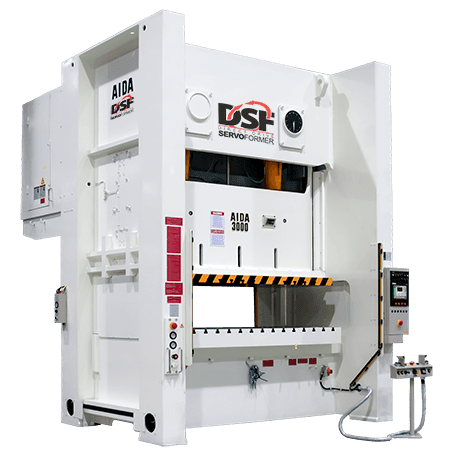

DSF-N2-3000 300 Ton Servo Press

Press Information

Press Information & Overview

Two-Point Unitized Frame Press Equipped with DSF Direct Drive Servo AIDA DSF-N2-3000

Same Mechanical Drive Train of the tried and true NS2 Mechanical Press
AIDA HOLP
ECO Power Management System
AIDA DSF Direct Drive Servo Motor

The AIDA DSF-N2 Direct Drive Unitized Frame Servo Press marries the successful mechanical design of the NS2 Series Mechanical Unitized Frame press with AIDA's DSF Direct Drive Servo. This combines the rigidity of a unitized frame with the flexibility of the freely programmable servo motion.

Request More Information

Press Features

AIDA DSF-N2 Structure

AIDA NC Gap Frame Mechanical Press Cutaway Graphic

Request More Information

Servo Press Control Features

CNC Handwheel Control

For Small Servo Presses

More about CNC Handwheel, Small Presses

E.C.O. System

Energy Conservation & Optimization

More about AIDA E.C.O. System

Mitsubishi Controls

For Small Servo Presses

Mitsubishi based controls for Servo Presses

More about Mitsubishi Controls

Programmable Slide Motions

Complete Control of Position, Velocity, Dwell & Beyond

Press Specifications

DSF-N2 Servo Press Specifications

110 Ton	160 Ton
200 Ton	250 Ton
300 Ton	Specifications PDF
110 - 300 Ton	Specifications PDF

DSF-N2-1100, 110 Ton Unitized Frame Servo Press Specifications

DSF-N2 MODELS
Press Technical Data	Unit	DSF-N2-1100
Tonnage Capacity	kN	1100
	U.S. Ton	121
Rating Point	mm	5.0
	in.	0.197
Working Energy	J	6000
	in-ton	27
Slide Stroke Length (maximum)	mm	180
	in.	7.09
SPM @ Full Stroke Length (no load)	spm	1 - 70
Stroke Length, Fully Adjustable * (See AIDA for further examples)	mm	50	75	100	125
	in.	2.0	3.0	3.9	4.9
SPM @ Stroke Length Above (no load)	spm	115	100	90	80
Die Height (SDAU)	mm	400
	in.	15.75
Slide Adjustment	mm	90
	in.	3.54
Slide Area (LR x FB)	mm	1360 x 520
	in.	53.5 x 20.5
Bolster Area (LR x FB)	mm	1660 x 680
	in.	65.4 x 26.8
Bolster Thickness	mm	155
	in.	6.1
Side Opening **	mm	700 x 440 (430)
	in.	27.6 x 17.3 (16.9)
Max. Upper Die Weight	kg	550
	lbs.	1213
Main Motor (SERVO)	kW	40
	hp	55
Power Supply Capacity	kVA	26
Required Air Pressure	MPa	0.5
	psi	73
Foundation Bolt Position (LR x FB)	mm	2090 x 1200
	in.	82.3 x 47.2
Bed Opening Dimension (LR x FB)	mm	1480 x 350
	in.	58.3 x 13.8
Inside Frame Dimension	mm	1730
	in.	68.1
Press Foot Top of Bolster (without mounts)	mm	900
	in.	35.4
Overall Dimension (LR x FB)	mm	2515 x 2605
	in.	99.0 x 102.6
Approx. Overall Height(without mounts)	mm	3080
	in.	121
* Dimensions shown in inches rounded to the nearest tenth. ** Dimensions in parentheses ( ) show the height above the bolster.

110 Ton Press Specifications Back to Specifications List

DSF-N2-1600, 160 Ton Unitized Frame Servo Press Specifications

DSF-N2 MODELS
Press Technical Data	Unit	DSF-N2-1600
Tonnage Capacity	kN	1600
	U.S. Ton	176
Rating Point	mm	6.0
	in.	0.236
Working Energy	J	9600
	in-ton	42
Slide Stroke Length (maximum)	mm	200
	in.	7.87
SPM @ Full Stroke Length (no load)	spm	1 - 60
Stroke Length, Fully Adjustable * (See AIDA for further examples)	mm	50	75	100	125
	in.	2.0	3.0	3.9	4.9
SPM @ Stroke Length Above (no load)	spm	110	97	88	78
Die Height (SDAU)	mm	450
	in.	17.72
Slide Adjustment	mm	100
	in.	3.94
Slide Area (LR x FB)	mm	1500 x 580
	in.	59.1 x 22.8
Bolster Area (LR x FB)	mm	1800 x 760
	in.	70.9 x 29.9
Bolster Thickness	mm	165
	in.	6.5
Side Opening **	mm	780 x 480 (470)
	in.	30.7 x 18.9 (18.5)
Max. Upper Die Weight	kg	800
	lbs.	1764
Main Motor (SERVO)	kW	55
	hp	75
Power Supply Capacity	kVA	35
Required Air Pressure	MPa	0.5
	psi	73
Foundation Bolt Position (LR x FB)	mm	2270 x 1300
	in.	89.4 x 51.2
Bed Opening Dimension (LR x FB)	mm	1600 x 380
	in.	63.0 x 15.0
Inside Frame Dimension	mm	1910
	in.	75.2
Press Foot Top of Bolster (without mounts)	mm	900
	in.	35.4
Overall Dimension (LR x FB)	mm	2695 x 2805
	in.	106.1 x 110.4
Approx. Overall Height(without mounts)	mm	3340
	in.	131
* Dimensions shown in inches rounded to the nearest tenth. ** Dimensions in parentheses ( ) show the height above the bolster.

160 Ton Press Specifications Back to Specifications List

DSF-N2-2000, 200 Ton Unitized Frame Servo Press Specifications

DSF-N2 MODELS
Press Technical Data	Unit	DSF-N2-2000
Tonnage Capacity	kN	2000
	U.S. Ton	220
Rating Point	mm	7.0
	in.	0.276
Working Energy	J	16500
	in-ton	73
Slide Stroke Length (maximum)	mm	250
	in.	9.84
SPM @ Full Stroke Length (no load)	spm	1 - 50
Stroke Length, Fully Adjustable * (See AIDA for further examples)	mm	50	75	100	125
	in.	2.0	3.0	3.9	4.9
SPM @ Stroke Length Above (no load)	spm	105	92	82	75
Die Height (SDAU)	mm	500
	in.	19.68
Slide Adjustment	mm	110
	in.	4.33
Slide Area (LR x FB)	mm	1850 x 650
	in.	72.8 x 25.6
Bolster Area (LR x FB)	mm	2150 x 840
	in.	84.6 x 33.1
Bolster Thickness	mm	170
	in.	6.7
Side Opening **	mm	860 x 520 (510)
	in.	33.9 x 20.5 (20.1)
Max. Upper Die Weight	kg	1200
	lbs.	2646
Main Motor (SERVO)	kW	120
	hp	160
Power Supply Capacity	kVA	43
Required Air Pressure	MPa	0.5
	psi	73
Foundation Bolt Position (LR x FB)	mm	2620 x 1400
	in.	103.1 x 55.1
Bed Opening Dimension (LR x FB)	mm	1900 x 460
	in.	74.8 x 18.1
Inside Frame Dimension	mm	2050
	in.	80.7
Press Foot Top of Bolster (without mounts)	mm	1000
	in.	39.4
Overall Dimension (LR x FB)	mm	2960 x 2905
	in.	116.5 x 114.4
Approx. Overall Height(without mounts)	mm	3730
	in.	147
* Dimensions shown in inches rounded to the nearest tenth. ** Dimensions in parentheses ( ) show the height above the bolster.

200 Ton Press Specifications Back to Specifications List

DSF-N2-2500, 250 Ton Unitized Frame Servo Press Specifications

DSF-N2 MODELS
Press Technical Data	Unit	DSF-N2-2500
Tonnage Capacity	kN	2500
	U.S. Ton	275
Rating Point	mm	7.0
	in.	0.276
Working Energy	J	28000
	in-ton	124
Slide Stroke Length (maximum)	mm	280
	in.	11.02
SPM @ Full Stroke Length (no load)	spm	1 - 40
Stroke Length, Fully Adjustable * (See AIDA for further examples)	mm	50	75	100	125	150
	in.	2.0	3.0	3.9	4.9	5.9
SPM @ Stroke Length Above (no load)	spm	96	84	75	68	61
Die Height (SDAU)	mm	550
	in.	21.65
Slide Adjustment	mm	120
	in.	4.72
Slide Area (LR x FB)	mm	2100 x 700
	in.	82.7 x 27.6
Bolster Area (LR x FB)	mm	2400 x 920
	in.	94.5 x 36.2
Bolster Thickness	mm	180
	in.	7.1
Side Opening **	mm	940 x 560 (550)
	in.	37.0 x 22.0 (21.7)
Max. Upper Die Weight	kg	1650
	lbs.	3638
Main Motor (SERVO)	kW	120
	hp	160
Power Supply Capacity	kVA	61
Required Air Pressure	MPa	0.5
	psi	73
Foundation Bolt Position (LR x FB)	mm	2920 x 1500
	in.	115.0 x 59.1
Bed Opening Dimension (LR x FB)	mm	2200 x 480
	in.	86.6 x 18.9
Inside Frame Dimension	mm	2520
	in.	99.2
Press Foot Top of Bolster (without mounts)	mm	1100
	in.	43.3
Overall Dimension (LR x FB)	mm	3255 x 3245
	in.	128.1 x 127.8
Approx. Overall Height(without mounts)	mm	4135
	in.	163
* Dimensions shown in inches rounded to the nearest tenth. ** Dimensions in parentheses ( ) show the height above the bolster.

250 Ton Press Specifications Back to Specifications List

DSF-N2-3000, 300 Ton Unitized Frame Servo Press Specifications

DSF-N2 MODELS
Press Technical Data	Unit	DSF-N2-3000
Tonnage Capacity	kN	3000
	U.S. Ton	330
Rating Point	mm	6.0
	in.	0.236
Working Energy	J	39000
	in-ton	173
Slide Stroke Length (maximum)	mm	300
	in.	11.81
SPM @ Full Stroke Length (no load)	spm	1 - 35
Stroke Length, Fully Adjustable * (See AIDA for further examples)	mm	50	75	100	125	150
	in.	2.0	3.0	3.9	4.9	5.9
SPM @ Stroke Length Above (no load)	spm	90	78	69	62	57
Die Height (SDAU)	mm	650
	in.	25.59
Slide Adjustment	mm	130
	in.	5.12
Slide Area (LR x FB)	mm	2400 x 900
	in.	94.5 x 35.4
Bolster Area (LR x FB)	mm	2600 x 1200
	in.	102.4 x 47.2
Bolster Thickness	mm	200
	in.	7.9
Side Opening **	mm	1220 x 690 (680)
	in.	48.0 x 27.2 (26.8)
Max. Upper Die Weight	kg	2300
	lbs.	5071
Main Motor (SERVO)	kW	120
	hp	160
Power Supply Capacity	kVA	69
Required Air Pressure	MPa	0.5
	psi	73
Foundation Bolt Position (LR x FB)	mm	3260 x 1650
	in.	128.3 x 65.0
Bed Opening Dimension (LR x FB)	mm	2390 x 520
	in.	94.1 x 20.5
Inside Frame Dimension	mm	2550
	in.	100.4
Press Foot Top of Bolster (without mounts)	mm	1150
	in.	45.3
Overall Dimension (LR x FB)	mm	3725 x 3355
	in.	146.7 x 132.1
Approx. Overall Height(without mounts)	mm	4460
	in.	176
* Dimensions shown in inches rounded to the nearest tenth. ** Dimensions in parentheses ( ) show the height above the bolster.

300 Ton Press Specifications Back to Specifications List

DSF-N2, 110 - 300 Ton Unitized Frame Servo Press Specifications

DSF-N2 MODELS
Press Technical Data	Unit	DSF-N2-1100				DSF-N2-1600				DSF-N2-2000				DSF-N2-2500					DSF-N2-3000
Tonnage Capacity	kN	1100				1600				2000				2500					3000
	U.S. Ton	121				176				220				275					330
Rating Point	mm	5.0				6.0				7.0				7.0					6.0
	in.	0.197				0.236				0.276				0.276					0.236
Working Energy	J	6000				9600				16500				28000					39000
	in-ton	27				42				73				124					173
Slide Stroke Length (maximum)	mm	180				200				250				280					300
	in.	7.09				7.87				9.84				11.02					11.81
SPM @ Full Stroke Length (no load)	spm	1 - 70				1 - 60				1 - 50				1 - 40					1 - 35
Stroke Length, Fully Adjustable * (See AIDA for further examples)	mm	50	75	100	125	50	75	100	125	50	75	100	125	50	75	100	125	150	50	75	100	125	150
	in.	2.0	3.0	3.9	4.9	2.0	3.0	3.9	4.9	2.0	3.0	3.9	4.9	2.0	3.0	3.9	4.9	5.9	2.0	3.0	3.9	4.9	5.9
SPM @ Stroke Length Above (no load)	spm	115	100	90	80	110	97	88	78	105	92	82	75	96	84	75	68	61	90	78	69	62	57
Die Height (SDAU)	mm	400				450				500				550					650
	in.	15.75				17.72				19.68				21.65					25.59
Slide Adjustment	mm	90				100				110				120					130
	in.	3.54				3.94				4.33				4.72					5.12
Slide Area (LR x FB)	mm	1360 x 520				1500 x 580				1850 x 650				2100 x 700					2400 x 900
	in.	53.5 x 20.5				59.1 x 22.8				72.8 x 25.6				82.7 x 27.6					94.5 x 35.4
Bolster Area (LR x FB)	mm	1660 x 680				1800 x 760				2150 x 840				2400 x 920					2600 x 1200
	in.	65.4 x 26.8				70.9 x 29.9				84.6 x 33.1				94.5 x 36.2					102.4 x 47.2
Bolster Thickness	mm	155				165				170				180					200
	in.	6.1				6.5				6.7				7.1					7.9
Side Opening **	mm	700 x 440 (430)				780 x 480 (470)				860 x 520 (510)				940 x 560 (550)					1220 x 690 (680)
	in.	27.6 x 17.3 (16.9)				30.7 x 18.9 (18.5)				33.9 x 20.5 (20.1)				37.0 x 22.0 (21.7)					48.0 x 27.2 (26.8)
Max. Upper Die Weight	kg	550				800				1200				1650					2300
	lbs.	1213				1764				2646				3638					5071
Main Motor (SERVO)	kW	40				55				120				120					120
	hp	55				75				160				160					160
Power Supply Capacity	kVA	26				35				43				61					69
Required Air Pressure	MPa	0.5				0.5				0.5				0.5					0.5
	psi	73				73				73				73					73
Foundation Bolt Position (LR x FB)	mm	2090 x 1200				2270 x 1300				2620 x 1400				2920 x 1500					3260 x 1650
	in.	82.3 x 47.2				89.4 x 51.2				103.1 x 55.1				115.0 x 59.1					128.3 x 65.0
Bed Opening Dimension (LR x FB)	mm	1480 x 350				1600 x 380				1900 x 460				2200 x 480					2390 x 520
	in.	58.3 x 13.8				63.0 x 15.0				74.8 x 18.1				86.6 x 18.9					94.1 x 20.5
Inside Frame Dimension	mm	1730				1910				2050				2520					2550
	in.	68.1				75.2				80.7				99.2					100.4
Press Foot Top of Bolster (without mounts)	mm	900				900				1000				1100					1150
	in.	35.4				35.4				39.4				43.3					45.3
Overall Dimension (LR x FB)	mm	2515 x 2605				2695 x 2805				2960 x 2905				3255 x 3245					3725 x 3355
	in.	99.0 x 102.6				106.1 x 110.4				116.5 x 114.4				128.1 x 127.8					146.7 x 132.1
Approx. Overall Height(without mounts)	mm	3080				3340				3730				4135					4460
	in.	121				131				147				163					176
* Dimensions shown in inches rounded to the nearest tenth. ** Dimensions in parentheses ( ) show the height above the bolster.

110 - 300 Ton Press Specifications Back to Specifications List

Technical Resources

Videos, Articles & Additional Information

200 Ton Servo Press with Progressive Die

This video shows how Pinnacle Tool Works, Aurora, Ontario, Canada, was able to increase production from 35 parts per minute on an AIDA PMX-4000, 400 ton mechanical link motion press to 50 parts per minute on a an AIDA DSF-N2-2000, 200 ton DSF Series servo press (shown slower in the video because of manual packing of the parts). Additionally, Pinnacle was able to reduce the scrap rate from 4% to 1%. AIDA-America supplied the press in 2017. Pinnacle also owns and operates an AIDA DSF-N2-3000, 300 ton two-point servo press.

View More AIDA Videos on YouTube

Grant Group

High strength materials and heavier parts aren't too tough for servoforming technology

"The quality, speed and consistency of the AIDA direct-drive ServoFormer make it the press of the future."

View User Testimonial

Meier Tool & Engineering

The AIDA DSF direct-drive servoforming press allows Meier Tool to gain higher output and increase part repeatability from difficult-to-form materials

"We needed to be able to control slide velocity not only throughout the stroke but during bottom dead center work."

View User Testimonial

Metalstamp

A pair of gap frame presses and a straightside press, all equipped with servo technology, deliver a slew of benefits to this automotive parts stamper.

"As a result of this flexibility we've begun to quote jobs we could not have considered in the past, such as pausing at a given point in the stroke to perform laser welding or component insertion."

View User Testimonial

Pyper Tool & Engineering

Tool builder installs servo press to better serve customers

"I thought a long-term strategy would be to have a servo press in our die shop so that we could perform research and development and come up with some new techniques."

View User Testimonial

Royal Die & Stamping

Royal Die and Stamping reduces labor and scrap with an advanced servo press

"The programmable stroke was a big help on this job, we could do the job on another press but we were having issues with the small punches breaking."

View User Testimonial

Frequently Asked Questions

We offer answers for all types of common questions - whether technical in nature or as simple as where to look for career opportunities. Examples of some questions are: What is HOLP? Where is closest AIDA facility located? How can we get a copy of the manual for our AIDA press? What is reverse tonnage? Visit our frequently answered questions section to find answers to your questions.

View Frequently Asked Questions

AIDA-Tech White Papers

Topics such as connections spacing, slide guiding systems, reverse tonnage and more, AIDA-Tech White papers offer information for a variety of technical subjects related to stamping presses and press operations.

View AIDA-Tech White Papers

Metalforming Articles

Metalforming Technology and Industry Articles

We maintain a library of metalforming articles from a variety of industry publications covering a wide range of topics centered on stamping and press operations. Topics include press technology, market trends, and press applications. Many of the articles collected here have been authored by or contributed to by AIDA associates.

View Metalforming Articles

Educational Partners & Resources

Not only does AIDA invest 5% of annual revenue towards internal research and development, but AIDA also actively seeks and participates in research with educational institutions such as the Center for Precision Forming (OSU), Institut für Umformtechnik, Edison Welding and others.

More About Educational Partners

Applications Studies & Die Trials

Die trials provided by AIDA prove, in real-time with your own dies, how AIDA servo press technology can have multiple benefits to your stamping operations, including increased production rates, higher quality parts, reduced scrap, and reduced maintenance.

Applications Studies & Die Trials

ServoFormer Application Training

AIDA's ServoFormer Application Training (SAT) Program is designed to help you fully realize the benefits servo presses can bring to your stamping operation. AIDA-America - located in Dayton, OH, USA - provides in-house and on-site training for customers and is an active and on-call partner through application studies, die trials and post-purchase operator training.

Servo Press Application Training

Servo Press Optimization

AIDA understands that in order to maximize the benefits that servo press technology can bring the operations must be optimized. AIDA provides on-the-floor stroke profile optimization for maximum productivity.

Servo Press Optimization

Stamping Press Technology

Multiple Press Plant Layout Illustration

For over 100 years AIDA has been developing and manufacturing specialized metalforming products like metal stamping presses and related automation equipment, such as transfers, robots, and feeders. AIDA's exclusive stamping press technology is used throughout our wide range of presses, from 30 through 4,000 tons capacity.

Stamping Press Technology

Servo Press Technology

AIDA introduced the world's first direct drive servo stamping presses more than a decade ago. Since that time, AIDA has continued to maintain the position of technology leader in developing servoforming presses. AIDA DSF Series (Direct Drive Servo Former) servo presses represent the pinnacle of advanced engineering and manufacturing in the metalforming and stamping press industries.

Servo Press Technology

Terms & Glossary

Stamping and Metalforming Industry Terms and Glossary

A variety of functions may be performed by many different types of presses, depending upon the tooling. Typical press operations and other terms referring to press features and functions, as well as basic press characteristics and designs are explained in this section of our website.

View Terms & Glossary

Unitized Frame Servo Press DSF-N2 Two-Point, From 110 - 300 Tons

Press Information

Press Information & Overview

Press Features

AIDA DSF-N2 Structure

Servo Press Control Features

CNC Handwheel Control

E.C.O. System

Mitsubishi Controls

Programmable Slide Motions

Press Specifications

DSF-N2 Servo Press Specifications

DSF-N2-1100, 110 Ton Unitized Frame Servo Press Specifications

DSF-N2-1600, 160 Ton Unitized Frame Servo Press Specifications

DSF-N2-2000, 200 Ton Unitized Frame Servo Press Specifications

DSF-N2-2500, 250 Ton Unitized Frame Servo Press Specifications

DSF-N2-3000, 300 Ton Unitized Frame Servo Press Specifications

DSF-N2, 110 - 300 Ton Unitized Frame Servo Press Specifications

Technical Resources

Videos, Articles & Additional Information

Grant Group

Meier Tool & Engineering

Metalstamp

Pyper Tool & Engineering

Royal Die & Stamping

Frequently Asked Questions

AIDA-Tech White Papers

Metalforming Articles

Educational Partners & Resources

Applications Studies & Die Trials

ServoFormer Application Training

Servo Press Optimization

Stamping Press Technology

Servo Press Technology

Terms & Glossary

Contact AIDA
