Progressive Die Mechanical Press PMX Two & Four Point, From 300 - 2,000 Tons

PMX-L2-8000 and PMX-L2-6000 800 and 600 Ton Progressive Die Stamping Presses PMX-L2-8000 and PMX-L2-6000, 800 and 600 Ton Progressive Die Stamping Presses

Press Information

Press Information & Overview

Features that Maximize Die Life and Improve Part Quality AIDA PMX-3000, 300 Ton Progressive Die Press
  • Progressive Link Motion Drive
  • Ball Type Suspension Points
  • Forged Eccentric Shafts
  • Dynamic Balancing of Slide and Upper Die
  • Wide Connection Spacing
  • AIDA's Exclusive Hydraulic Overload Protection
  • Very Low Deflection Tie Rod Frame

The AIDA PMX Series straightside press in capacities ranging from 300 to 1,000 tons capacity is manufactured in our modern 180,000 sq. ft. facility in Dayton, Ohio. The link motion, center drive limits torsional wind up of the massive eccentric shafts and provides more time in the forming zone to maximize material flow and improve part quality.

Adding the link motion to the extremely accurate, low deflection, press structure along with the wide spaced connections and long slide guides provides an unsurpassed environment for precision progressive dies. The PMX will reduce die maintenance and improve the quality of the parts being produced.

Request More Information

Press Features

Press Specifications

PMX Progressive Die Mechanical Press Specifications

200 Ton300 Ton
400 Ton500 Ton
600 Ton
200 - 300 Ton400 - 600 Ton

PMX-2000, 200 Ton Progressive Die Mechanical Press Specifications

PMX-2000 MODELS
Press Technical DataUnitPMX-2000
CapacitykN20002000
U.S. Ton220220
Stroke Lengthmm200200
in.7.877.87
Strokes per minute (No Load)spm50~12050~120
Die Heightmm475475
in.18.7018.70
Slide Area (LR x FB)mm1550x8301850x880
in.61.02x32.6872.83x34.65
Bolster Area (LR x FB)mm1550x9501850x950
in.61.02x37.472.83x37.4
Max upper die weightkg10001000
lbs.22052205
Side openingmm850x375850x375
in.33.46x14.7633.46x14.76
200 Ton Press SpecificationsBack to Specifications List

PMX-3000, 300 Ton Progressive Die Mechanical Press Specifications

PMX-3000 MODELS
Press Technical DataUnitPMX-3000
CapacitykN300030003000
U.S. Ton340340340
Stroke Lengthmm200200200
in.7.877.877.87
Strokes per minute (No Load)spm40~10040~10040~100
Die Heightmm550550550
in.21.6521.6521.65
Slide Area (LR x FB)mm1850x8802150x10002450x1200
in.72.83x34.6584.65x39.3796.46x47.24
Bolster Area (LR x FB)mm1850x10002150x10002450x1200
in.72.83x39.3784.65x39.3796.46x47.24
Max upper die weightkg100015001500
lbs.220533073307
Side openingmm900x4501020x4501220x450
in.35.43x17.7240.16x17.7248.03x17.72
300 Ton Press SpecificationsBack to Specifications List

PMX-4000, 400 Ton Progressive Die Mechanical Press Specifications

PMX-4000 MODELS
Press Technical DataUnitPMX-4000
CapacitykN40004000
U.S. Ton450450
Stroke Lengthmm200300
in.7.8711.81
Strokes per minute (No Load)spm30~8030~60
Die Heightmm650700
in.25.5927.56
Slide Area (LR x FB)mm2150x11502450x1150
in.84.65x45.2896.46x45.28
Bolster Area (LR x FB)mm2150x12502450x1250
in.84.65x49.2196.46x49.21
Max upper die weightkg30003000
lbs.66146614
Side openingmm1170x5501170x550
in.46.06x21.6546.06x21.65
400 Ton Press SpecificationsBack to Specifications List

PMX-5000, 500 Ton Progressive Die Mechanical Press Specifications

PMX-5000 MODELS
Press Technical DataUnitPMX-5000
CapacitykN50005000
U.S. Ton560560
Stroke Lengthmm250250
in.9.849.84
Strokes per minute (No Load)spm30~7030~70
Die Heightmm700700
in.27.5627.56
Slide Area (LR x FB)mm2150x11502450x1150
in.84.65x45.2896.46x45.28
Bolster Area (LR x FB)mm2150x12502450x1250
in.84.65x49.2196.46x49.21
Max upper die weightkg30003000
lbs.66146614
Side openingmm1170x6001170x600
in.46.06x23.6246.06x23.62
500 Ton Press SpecificationsBack to Specifications List

PMX-6000, 600 Ton Progressive Die Mechanical Press Specifications

PMX-6000 MODELS
Press Technical DataUnitPMX-6000
CapacitykN6000
U.S. Ton670
Stroke Lengthmm250
in.9.84
Strokes per minute (No Load)spm30~70
Die Heightmm750
in.29.53
Slide Area (LR x FB)mm2450x1250
in.96.46x49.21
Bolster Area (LR x FB)mm2450x1400
in.96.46x55.12
Max upper die weightkg3000
lbs.6614
Side openingmm1270x650
in.50x25.59
600 Ton Press SpecificationsBack to Specifications List

PMX, 200 - 300 Ton Progressive Die Mechanical Press Specifications

PMX MODELS
Press Technical DataUnitPMX-2000PMX-3000
CapacitykN20002000300030003000
U.S. Ton220220340340340
Stroke Lengthmm200200200200200
in.7.877.877.877.877.87
Strokes per minute (No Load)spm50~12050~12040~10040~10040~100
Die Heightmm475475550550550
in.18.7018.7021.6521.6521.65
Slide Area (LR x FB)mm1550x8301850x8801850x8802150x10002450x1200
in.61.02x32.6872.83x34.6572.83x34.6584.65x39.3796.46x47.24
Bolster Area (LR x FB)mm1550x9501850x9501850x10002150x10002450x1200
in.61.02x37.472.83x37.472.83x39.3784.65x39.3796.46x47.24
Max upper die weightkg10001000100015001500
lbs.22052205220533073307
Side openingmm850x375850x375900x4501020x4501220x450
in.33.46x14.7633.46x14.7635.43x17.7240.16x17.7248.03x17.72
200 - 300 Ton Press SpecificationsBack to Specifications List

PMX, 400 - 600 Ton Progressive Die Mechanical Press Specifications

PMX MODELS
Press Technical DataUnitPMX-4000PMX-5000PMX-6000
CapacitykN40004000500050006000
U.S. Ton450450560560670
Stroke Lengthmm200300250250250
in.7.8711.819.849.849.84
Strokes per minute (No Load)spm30~8030~6030~7030~7030~70
Die Heightmm650700700700750
in.25.5927.5627.5627.5629.53
Slide Area (LR x FB)mm2150x11502450x11502150x11502450x11502450x1250
in.84.65x45.2896.46x45.2884.65x45.2896.46x45.2896.46x49.21
Bolster Area (LR x FB)mm2150x12502450x12502150x12502450x12502450x1400
in.84.65x49.2196.46x49.2184.65x49.2196.46x49.2196.46x55.12
Max upper die weightkg30003000300030003000
lbs.66146614661466146614
Side openingmm1170x5501170x5501170x6001170x6001270x650
in.46.06x21.6546.06x21.6546.06x23.6246.06x23.6250x25.59
400 - 600 Ton Press SpecificationsBack to Specifications List

Technical Resources

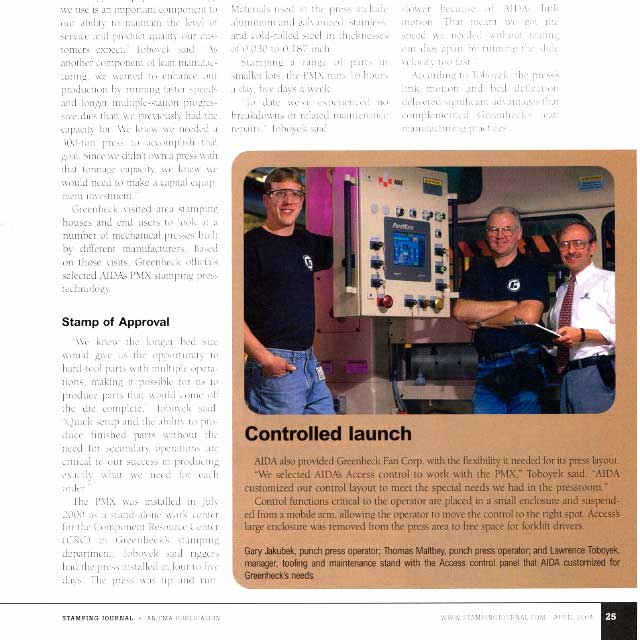

Greenheck Fan
