Unitized Frame Mechanical Press NS2 Two-Point, From 110 - 300 Tons

NS2-2000 Tandem Line 200 Ton Mechanical Unitized Frame Presses NS2 Tandem Line, 300 and 400 Ton Mechanical Unitized Frame Presses

Press Information

Press Information & Overview

Two-Point Unitized Frame Stamping Presses AIDA N2-2000
  • Highly rigid frame
  • Fast acting HOLP system (10 msec)
  • AIDA Wet clutch and Brake
  • 6-Point full length Bronze Gibs
  • Brake stop-time monitoring display
  • Automatic lubrication system for Gibs and Crankshaft Bearings
  • AIDA MPC safety controller
  • Quill mounted flywheel with a flywheel brake
  • AC variable frequency drive

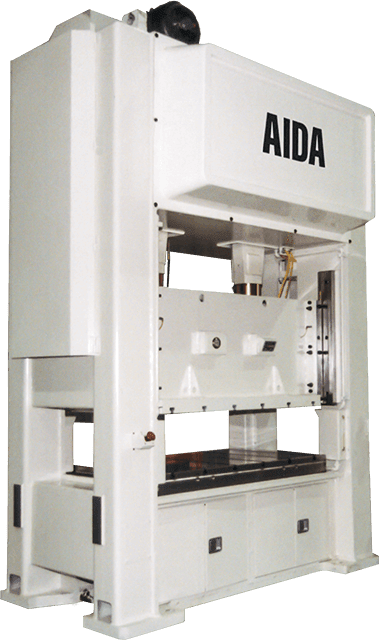

AIDA NS2, two-point unitized frame mechanical presses are available from 110 through 300 tons capacity. The six-point slide guide system provides a long useful life. The wet-type clutch and brake provide higher intermittent rates and long life - important factors for hand-fed and top-stop applications.

An AC Variable frequency drive allows for wider speed ranges. The Quill mounted flywheel results in a larger bearing surface. The front to back mounted forged steel crankshaft along with hardened and precision ground gears are well suited for high stress blanking applications. Micro-Inching provides die setting at very low speeds. Additionally, an extensive spare parts inventory in Dayton, OH ensures continuous product support.

With nearly 7,000 AIDA servo and mechanical presses and forming system equipment installations in North America, it is easy to see that AIDA presses are an industry standard.

Request More Information

Press Features

AIDA NS2 Unitized Frame Press Features

AIDA NS Unitized Frame Mechanical Press Cutaway Graphic
  1. Ball and Socket Connections AIDA Ball Type Connections
  2. Hydraulic Overload Protection System (HOLP) AIDA Hydraulic Overload Protection System (HOLP)
  3. Recirculating Lubrication System Recirculating Lubrication System for Stamping Presses
  4. AIDA Wet Clutch and Brake AIDA Wet Clutch and Brake
  5. Hardened & Ground Pinion / Ground Main Gear AIDA ground main gear
  6. Quill Mounted Flywheel AIDA Wet Type Clutch and Brake
  • Additional Features & Benefits
  • Installation and service support by AIDA factory trained technicians
  • Highly rigid frame
  • Flywheel brake
  • Counterbalance lube pump
  • Air blow-off with solenoid valve
  • ASME certified air tanks
  • Full length 6-point slide guides
Request More Information

6-Point Slide Guide System

6-Point Slide Guide System Simple, Yet Effective Slide Guide System for Stamping Presses

Extra-long gibs with extensions on the slide minimize "tipping" of the slide within the guides and provide superior off-center guiding vs. industry standard


More about 6-Point Slide Guide System

AIDA Wet Clutch and Brake

AIDA Wet Clutch and Brake High Single Cycle Rates, Low Mainenance

High performance torque transmission system for mechanical press drives. Very little heat generation and component wear so performance does not deteriorate over time.


More about AIDA Wet Clutch and Brake

Ball and Socket Connections

Ball and socket connections Improved Design When Compared to Wrist Pin Connections

Eliminate one of the largest maintenance costs of a stamping press: the wrist pin slide connections. Designed to withstand the rigors of heavy stamping.


More about Ball and Socket Connections

High Precision Drivetrain System

Close up photo of gears Utilizes Hardened and Ground Pinion and Main Gears

Provides industry minimal backlash resulting in improved press accuracy. Integrated hardened pinion minimizes required gear diameters and related drivetrain inertia.


More about High Precision Drivetrain System

HOLP

AIDA hydraulic overload protection system (HOLP) diagram Hydraulic Overload Protection System

AIDA's press technology - the industry's fastest protection system. When overload occurs, oil evacuates 360 degrees around the ball seat with minimum oil flow resistance as compared to conventional systems


More about HOLP System

Quill Mounted Flywheel

Quill mounted flywheel Increases the Life of the Flywheel and Main Driveshaft Bearings

The flywheel is mounted on a quill that is attached to the press frame. The driveshaft passes through the quill and operates in an oil film bearing.


More about Quill Mounted Flywheel

Recirculating Oil Lubrication System

photo of a recirculating oil system on an AIDA stamping press Providing Clean Oil in Metered Amounts to all Bearing Points

Oil from all lube points is captured, filtered, and recirculated. Bearing points are monitored to ensure that they receive the correct amount of oil.


More about Recirculating Oil Lubrication System

Press Specifications

NS2 Mechanical Unitized Frame Press Specifications

110 Ton160 Ton
200 Ton250 Ton
300 Ton Specifications PDF
110 - 300 TonSpecifications PDF

NS2-1100, 110 Ton Mechanical Unitized Frame Press Specifications

NS2 MODELS
Press Technical Data Unit NS2-1100
Tonnage Capacity kN 1100
U.S. ton 121
Rating Point mm 5.0
in. 0.19
Stroke Length mm 110
in. 4.33
Strokes per Minute (No Load) spm 50~110
Die Height, slide to bolster mm 350
in. 13.78
Slide Adjustment mm 90
in. 3.54
Slide Area (LR x FB) mm 1360 x 520
in. 53.54 x 20.50
Bolster Area (LR x FB) mm 1660 x 680
in. 65.40 x 26.80
Side Opening (W x H) mm 700 x 285
in. 27.6 x 11.2
Bolster Thickness mm 155
in. 6.10
Maximum Upper Die Weight kg 550
lbs. 1213
Main Motor kW 11
HP 15
Required Air Pressure Mpa 0.5
psi 73
110 Ton Press Specifications Back to Specifications List

NS2-1600, 160 Ton Mechanical Unitized Frame Press Specifications

NS2 MODELS
Press Technical Data Unit NS2-1600
(1) (2)
Tonnage Capacity kN 1600
U.S. ton 176
Rating Point mm 6.0
in. 0.23
Stroke Length mm 130 200
in. 5.12 7.87
Strokes per Minute (No Load) spm 40~90 30~60
Die Height, slide to bolster mm 400 450
in. 15.76 17.72
Slide Adjustment mm 100
in. 3.94
Slide Area (LR x FB) mm 1500 x 580
in. 59.10 x 22.83
Bolster Area (LR x FB) mm 1800 x 760
in. 70.90 x 29.92
Side Opening (W x H) mm 780 x 325 780 x 375
in. 30.7 x 12.8 30.7 x 14.8
Bolster Thickness mm 165
in. 6.50
Maximum Upper Die Weight kg 800
lbs. 1760
Main Motor kW 15
HP 20
Required Air Pressure Mpa 0.5
psi 73
160 Ton Press Specifications Back to Specifications List

NS2-2000, 200 Ton Mechanical Unitized Frame Press Specifications

NS2 MODELS
Press Technical Data Unit NS2-2000
(1) (2)
Tonnage Capacity kN 2000
U.S. ton 220
Rating Point mm 7.0
in. 0.27
Stroke Length mm 150 250
in. 5.91 9.84
Strokes per Minute (No Load) spm 35~75 25~50
Die Height, slide to bolster mm 450 500
in. 17.72 19.69
Slide Adjustment mm 110
in. 4.33
Slide Area (LR x FB) mm 1850 x 650
in. 72.83 x 25.60
Bolster Area (LR x FB) mm 2150 x 840
in. 84.65 x 33.10
Side Opening (W x H) mm 860 x 365 860 x 415
in. 33.9 x 14.8 33.9 x 16.3
Bolster Thickness mm 170
in. 6.70
Maximum Upper Die Weight kg 1200
lbs. 2646
Main Motor kW 22
HP 30
Required Air Pressure Mpa 0.5
psi 73
200 Ton Press Specifications Back to Specifications List

NS2-2500, 250 Ton Mechanical Unitized Frame Press Specifications

NS2 MODELS
Press Technical Data Unit NS2-2500
(1) (2)
Tonnage Capacity kN 2500
U.S. ton 275
Rating Point mm 7.0
in. 0.27
Stroke Length mm 170 280
in. 6.70 11.0
Strokes per Minute (No Load) spm 25~60 20~40
Die Height, slide to bolster mm 450 550
in. 17.72 21.65
Slide Adjustment mm 120
in. 4.72
Slide Area (LR x FB) mm 2100 x 700
in. 82.70 x 27.60
Bolster Area (LR x FB) mm 2400 x 920
in. 94.50 x 36.20
Side Opening (W x H) mm 940 x 355 940 x 455
in. 37.0 x 14.0 37.0 x 17.9
Bolster Thickness mm 180
in. 7.10
Maximum Upper Die Weight kg 1650
lbs. 3640
Main Motor kW 30
HP 40
Required Air Pressure Mpa 0.5
psi 73
250 Ton Press Specifications Back to Specifications List

NS2-3000, 300 Ton Mechanical Unitized Frame Press Specifications

NS2 MODELS
Press Technical Data Unit NS2-3000
(1) (2)
Tonnage Capacity kN 3000
U.S. ton 330
Rating Point mm 6.0
in. 0.23
Stroke Length mm 200 300
in. 7.87 11.81
Strokes per Minute (No Load) spm 20~50 15~35
Die Height, slide to bolster mm 600 650
in. 23.62 25.59
Slide Adjustment mm 130
in. 5.12
Slide Area (LR x FB) mm 2400 x 900
in. 94.50 x 35.40
Bolster Area (LR x FB) mm 2600 x 1200
in. 102.40 x 47.20
Side Opening (W x H) mm 1220 x 530 1220 x 580
in. 48.0 x 20.9 48.0 x 22.8
Bolster Thickness mm 200
in. 7.90
Maximum Upper Die Weight kg 2300
lbs. 5071
Main Motor kW 37
HP 50
Required Air Pressure Mpa 0.5
psi 73
300 Ton Press Specifications Back to Specifications List

NS2, 110 - 300 Ton Mechanical Unitized Frame Press Specifications

NS2 MODELS
Press Technical Data Unit NS2-1100 NS2-1600 NS2-2000 NS2-2500 NS2-3000
(1) (1) (2) (1) (2) (1) (2) (1) (2)
Tonnage Capacity kN 1100 1600 2000 2500 3000
U.S. ton 121 176 220 275 330
Rating Point mm 5.0 6.0 7.0 7.0 6.0
in. 0.19 0.23 0.27 0.27 0.23
Stroke Length mm 110 130 200 150 250 170 280 200 300
in. 4.33 5.12 7.87 5.91 9.84 6.70 11.0 7.87 11.81
Strokes per Minute (No Load) spm 50~110 40~90 30~60 35~75 25~50 25~60 20~40 20~50 15~35
Die Height, slide to bolster mm 350 400 450 450 500 450 550 600 650
in. 13.78 15.76 17.72 17.72 19.69 17.72 21.65 23.62 25.59
Slide Adjustment mm 90 100 110 120 130
in. 3.54 3.94 4.33 4.72 5.12
Slide Area (LR x FB) mm 1360 x 520 1500 x 580 1850 x 650 2100 x 700 2400 x 900
in. 53.54 x 20.50 59.10 x 22.83 72.83 x 25.60 82.70 x 27.60 94.50 x 35.40
Bolster Area (LR x FB) mm 1660 x 680 1800 x 760 2150 x 840 2400 x 920 2600 x 1200
in. 65.40 x 26.80 70.90 x 29.92 84.65 x 33.10 94.50 x 36.20 102.40 x 47.20
Side Opening (W x H) mm 700 x 285 780 x 325 780 x 375 860 x 365 860 x 415 940 x 355 940 x 455 1220 x 530 1220 x 580
in. 27.6 x 11.2 30.7 x 12.8 30.7 x 14.8 33.9 x 14.8 33.9 x 16.3 37.0 x 14.0 37.0 x 17.9 48.0 x 20.9 48.0 x 22.8
Bolster Thickness mm 155 165 170 180 200
in. 6.10 6.50 6.70 7.10 7.90
Maximum Upper Die Weight kg 550 800 1200 1650 2300
lbs. 1213 1760 2646 3640 5071
Main Motor kW 11 15 22 30 37
HP 15 20 30 40 50
Required Air Pressure Mpa 0.5 0.5 0.5 0.5 0.5
psi 73 73 73 73 73
110 - 300 Ton Press Specifications Back to Specifications List

Technical Resources

Frequently Asked Questions

Frequently Asked Questions Answers to Your Questions about AIDA and Press Related Topics

We offer answers for all types of common questions - whether technical in nature or as simple as where to look for career opportunities. Examples of some questions are: What is HOLP? Where is the closest AIDA facility located? How can we get a copy of the manual for our AIDA press? What is reverse tonnage? Visit our frequently answered questions section to find answers to your questions.

View Frequently Asked Questions

AIDA-Tech White Papers

AIDA-Tech White Papers Technical Topics & Information

Topics such as connections spacing, slide guiding systems, reverse tonnage and more, AIDA-Tech White papers offer information for a variety of technical subjects related to stamping presses and press operations.

View AIDA-Tech White Papers

Metalforming Articles

Metalforming Technology and Industry Articles Articles from Industry Publications

We maintain a library of metalforming articles from a variety of industry publications covering a wide range of topics centered on stamping and press operations. Topics include press technology, market trends, and press applications. Many of the articles collected here have been authored by or contributed to by AIDA associates.

View Metalforming Articles

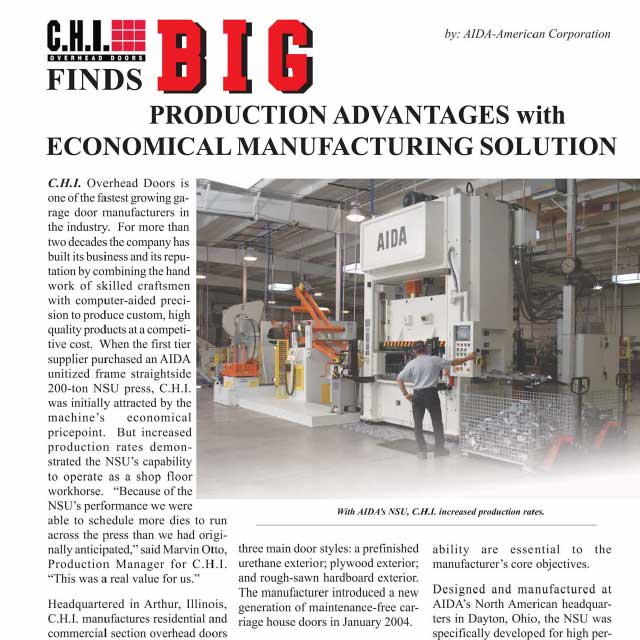

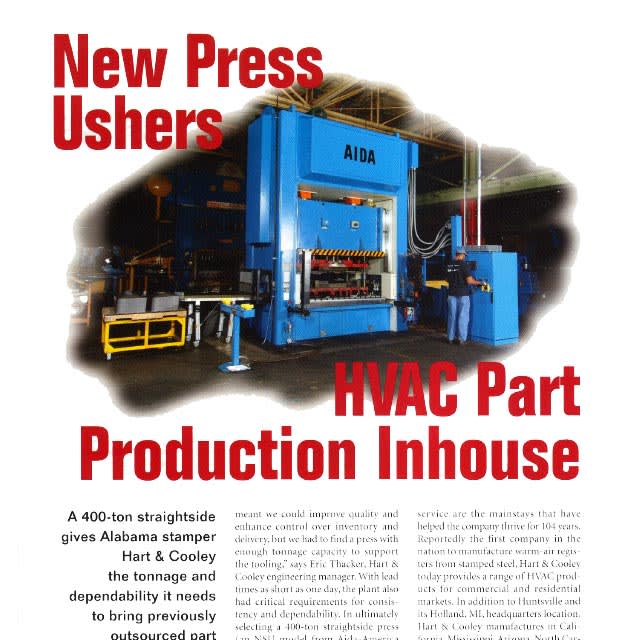

AIDA Press User Testimonials
